| ICD2O-E: SPRING 2026 | ||||
|---|---|---|---|---|
END (OF COURSE) |
||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |

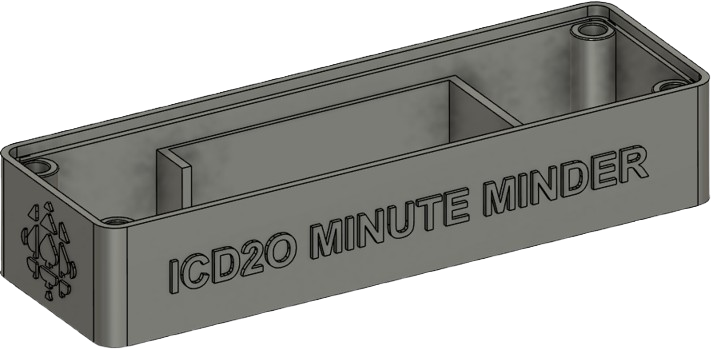

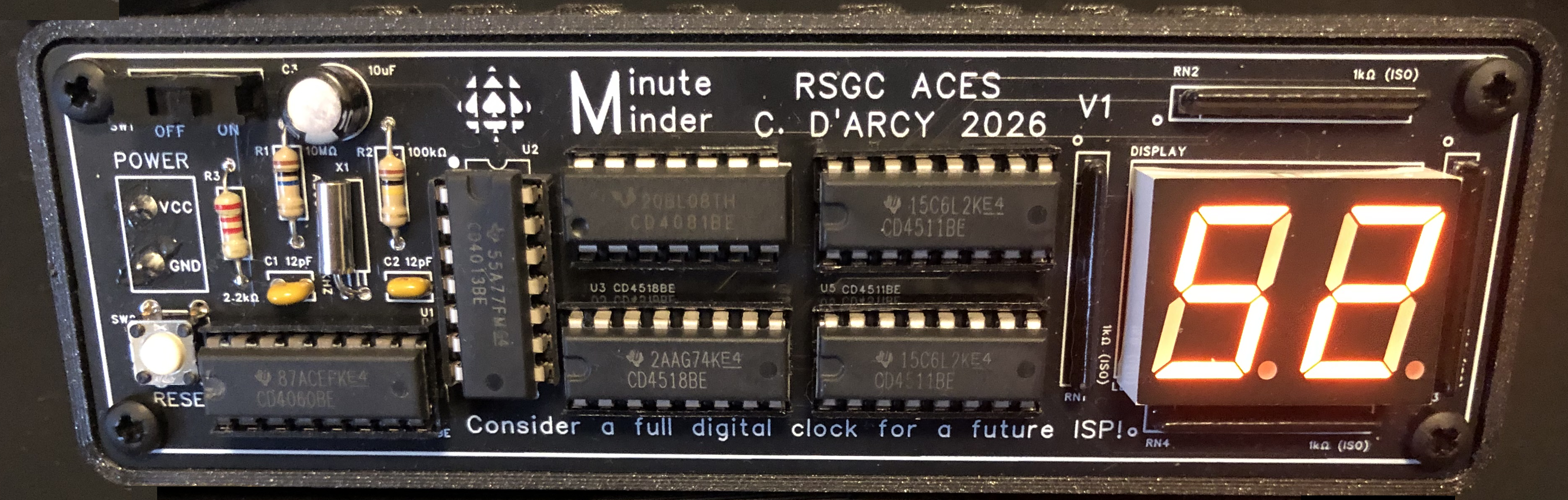

| Project 1.3 F. Encasement and Finishing Touches |
||||
|
37 May 19 |

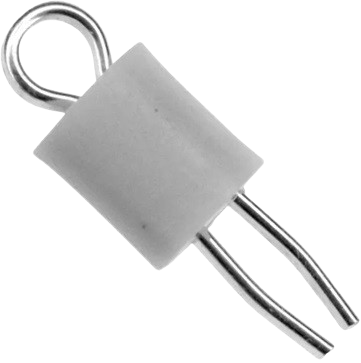

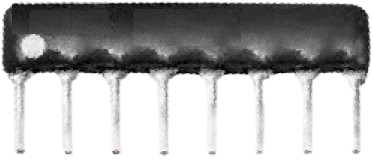

PCB and Supplemental Parts E. PCB Soldering |
|||
![]() |
||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
|
36 May 15 |
Asynchronous Pyjama Day |
Wise ACES use this as DER Day |
Develop your Report up to this stage |
|
|
35 May 13 |

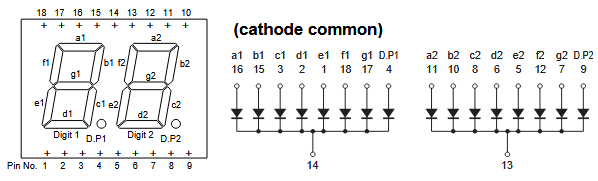

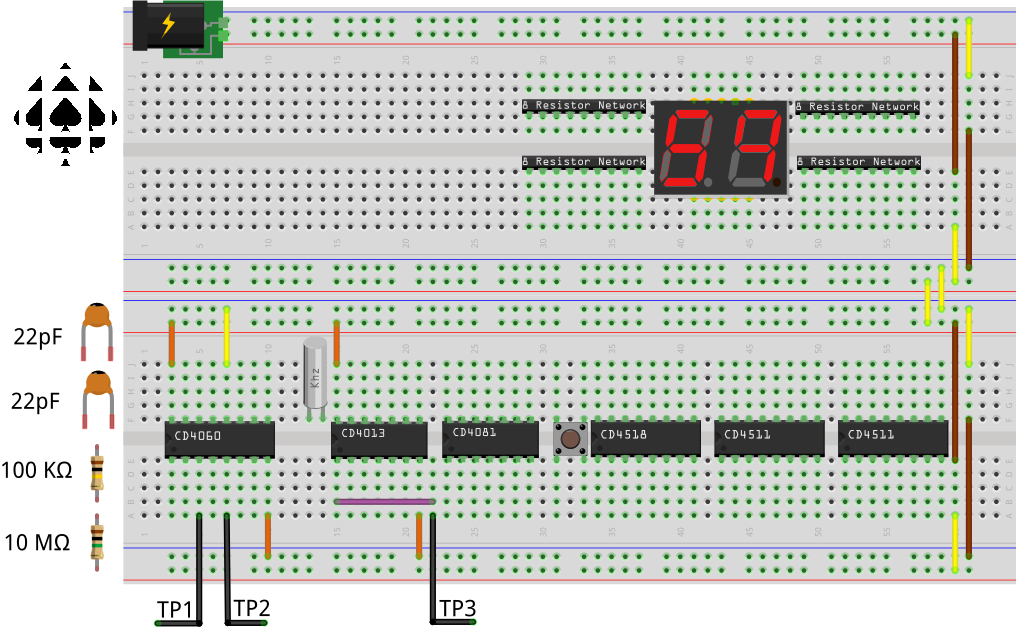

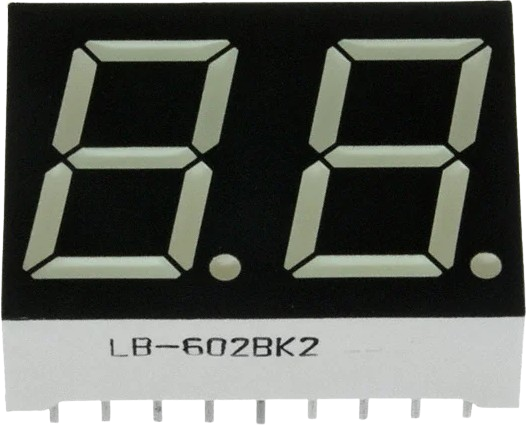

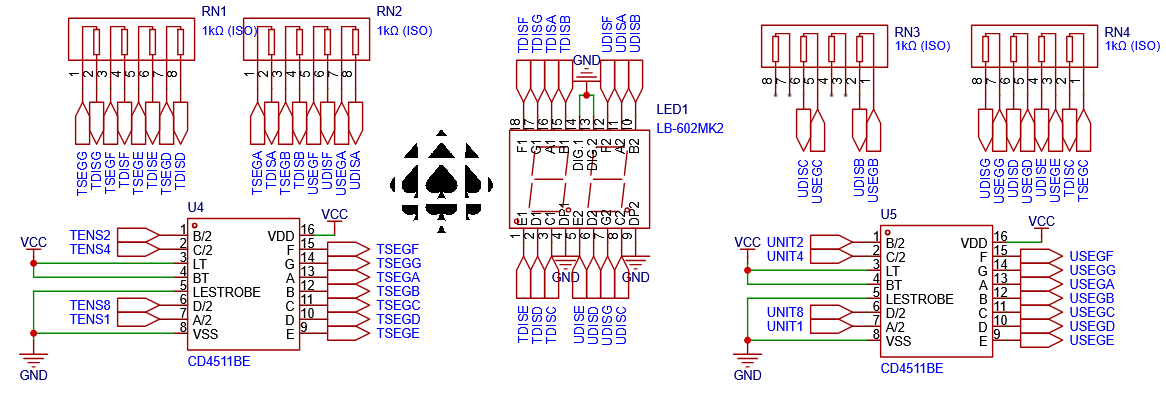

ACES' Frame Player: Minute Minder (Display) D. Dual 7-Segment Display Schematic D. Display ![]() |
|||

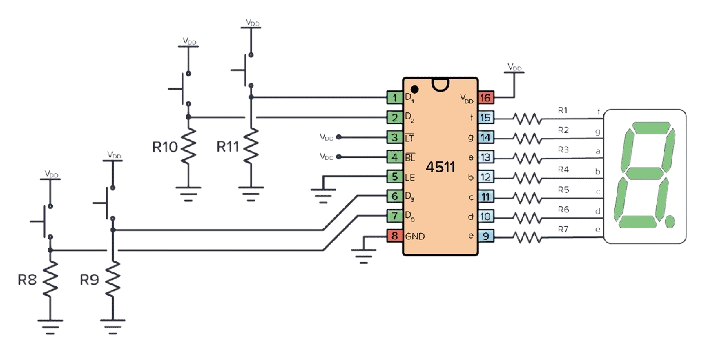

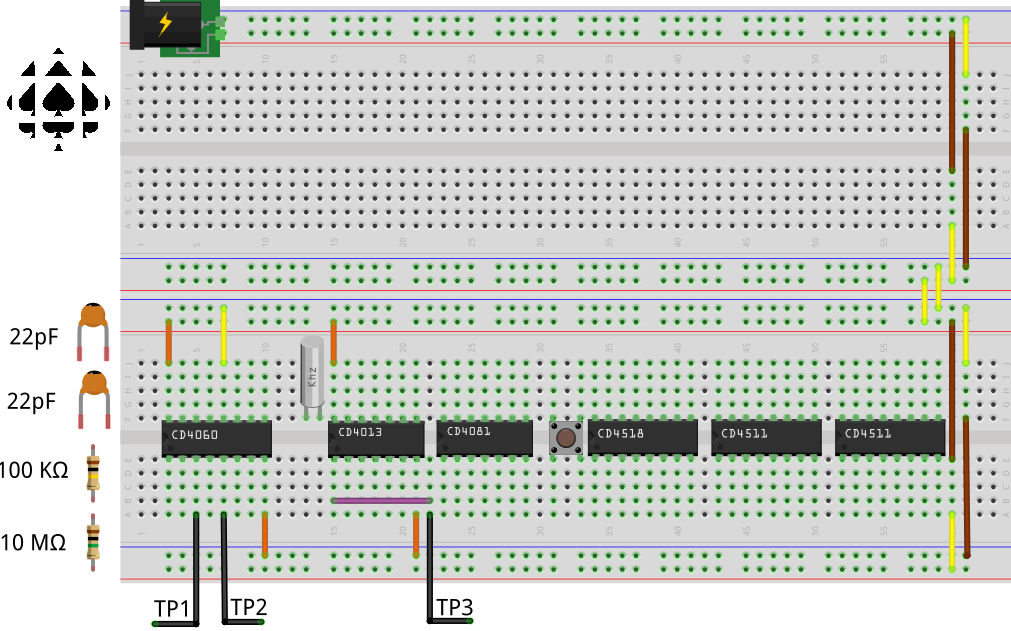

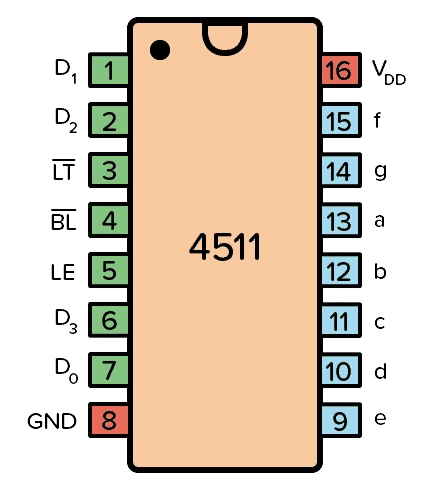

ACES' Frame Player: Minute Minder (BCD to 7-Segment) C. BCD to 7-Segment Decoding ![]() |
||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
33 May 7 |

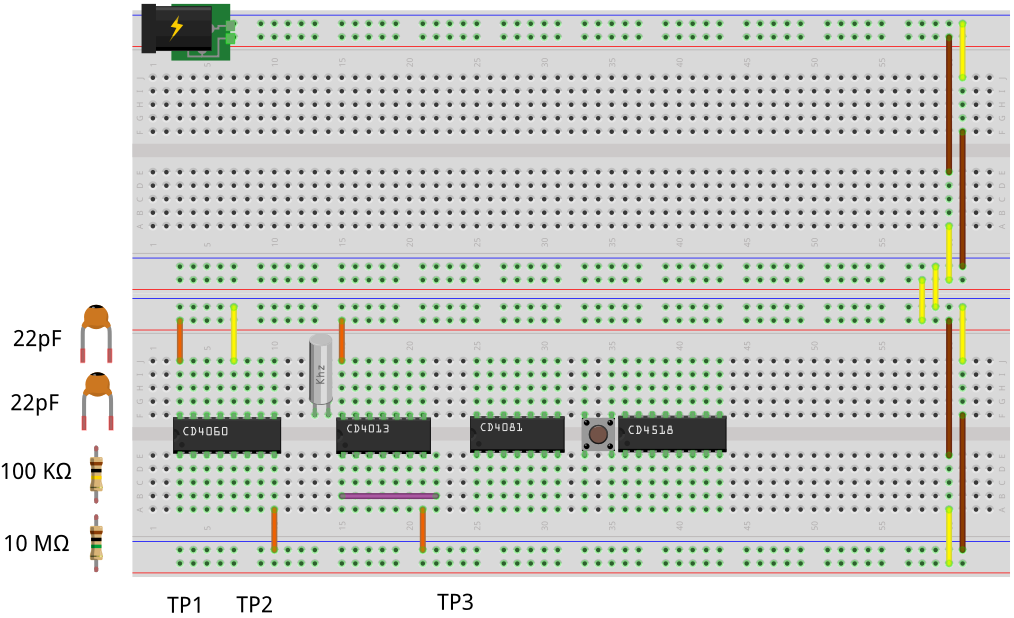

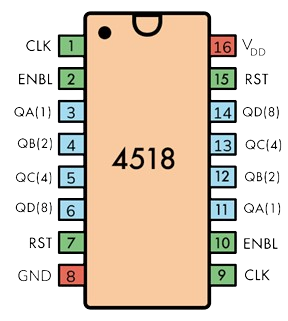

ACES' Frame Player: Minute Minder (BCD Counter) B. Binary Coded Decimal Counting 25/26 Binary Challenge Tournament Grade Final at 1:15 pm in the DES Thomas vs Camilo |
|||
|
32 May 5 |

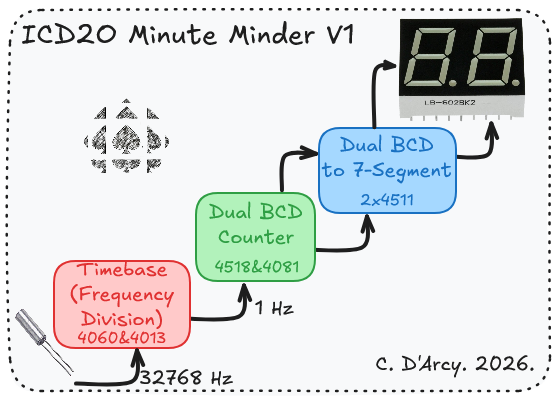

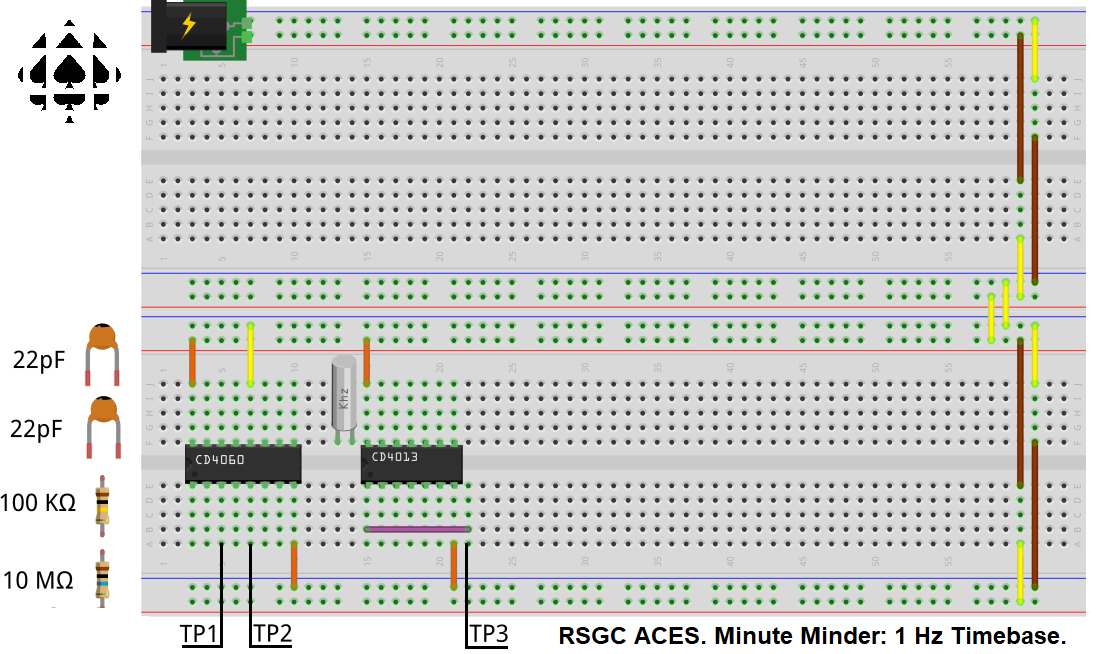

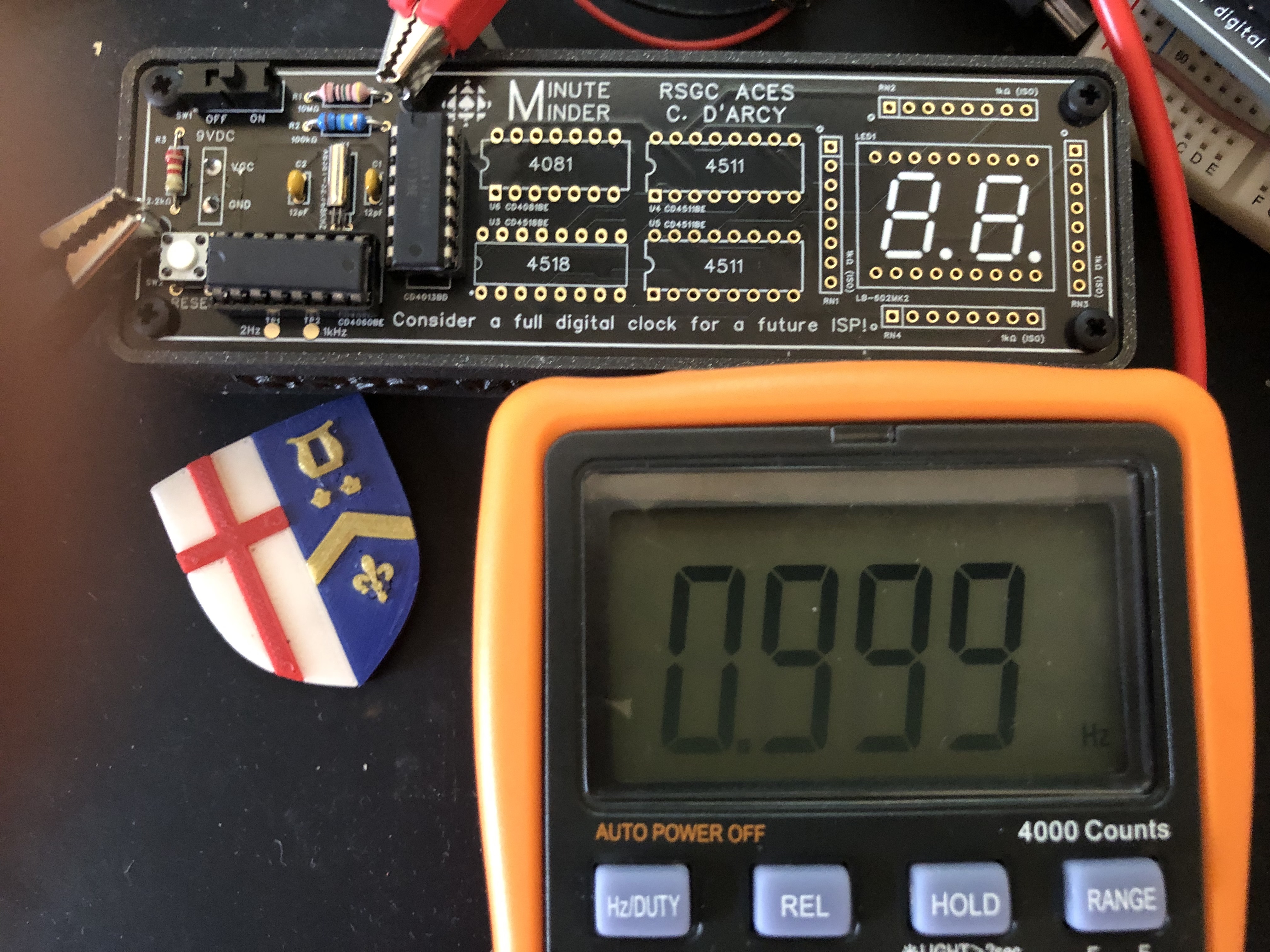

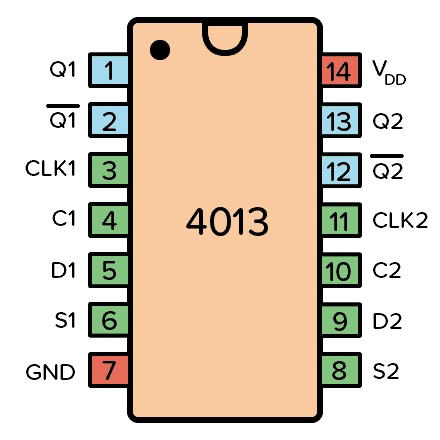

ACES' Frame Player: Minute Minder (Overview) A. 1 Hz Timebase its heart beats at 32.768 kHz 4060 14-bit (÷16,384) ripple counter with internal oscillator Spring 2026 Binary Challenge Tournament Course Final at 1:15 pm in the DES ![]() |
1.3 (A)![]() 32.768 kHz Cylindrical Tuning Fork Crystal Falstad Simulation Pierce Oscillator |
||
![]() |
||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
31 May 1 |
||||
30 Apr 29 |
|
2-Bit Adder: Prototype ![]() |
||
29 Apr 27 |
Combinational Circuits (Multiple Logic Gates) ACES' Frame Player: Combinational Circuits Falstad: Half Adder Build It! Falstad: Full Adder Build It! |
Half Adder
Full Adder
|
||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
28 Apr 23 |
Binary Challenge: Q4![]() |
Consider Binary Addition...![]() |
1.2* | |
|
CMOS IC Descriptions: Electronics Club |
Just as mathematical expressions

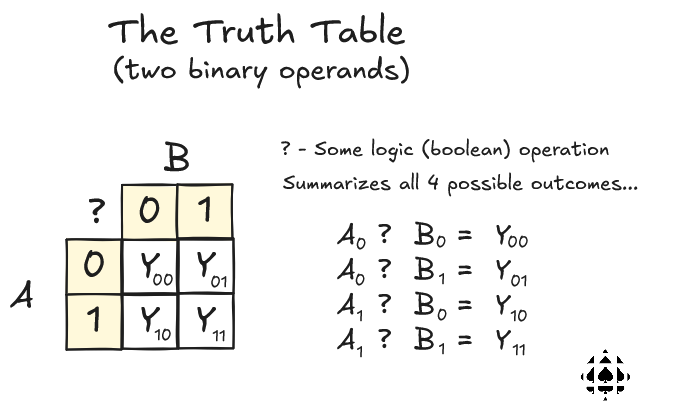

can be formed by combining arithmetic operators, so, too, are useful boolean expressions formed by combining logic operators (gates) Combinational Circuits (Multiple Logic Gates) ACES' Frame Player: Combinational Circuits |
|||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
|

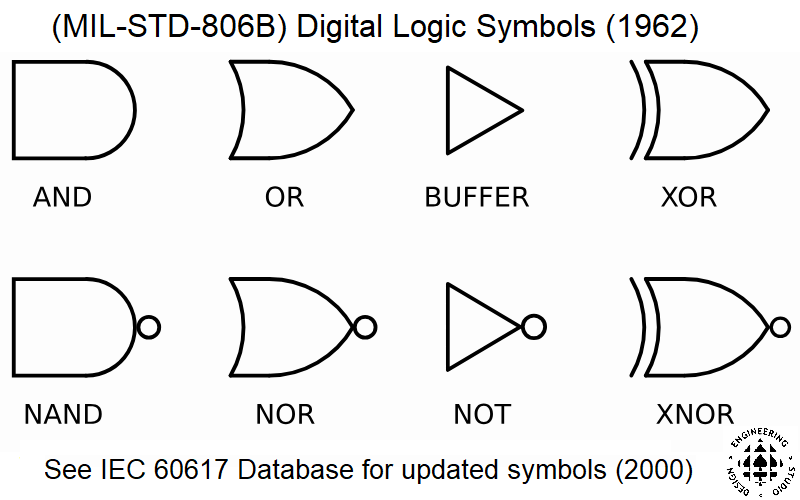

Recall VENN Diagrams BOOLE(AN) LOGIC OPERATORS ACES' Frame Player: Button Logic ACES' Frame Player: Transistor Logic |
||||
|
24 Apr 13 |
||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
| ARTEMIS II LIVE |
||||
|
23 Apr 9 |
1.2
![]() AA JB YB** TB* CB AF* KG CG HG BK AP EL KP* MQ** GQ CRA AS* NS* AT* TW HY JY |
|||
![]() |
||||
|
22 Apr 7 |

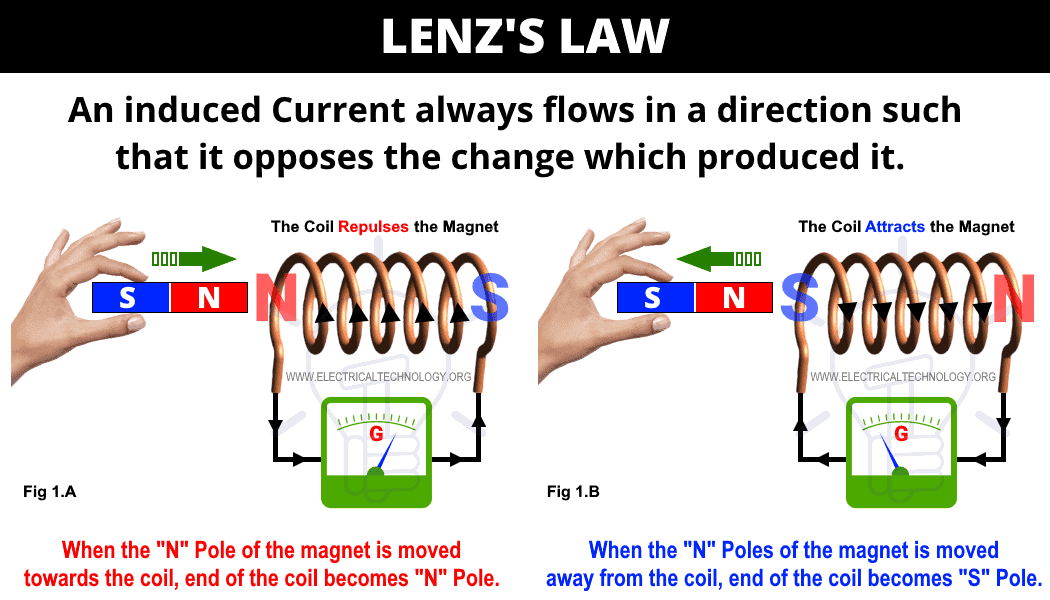

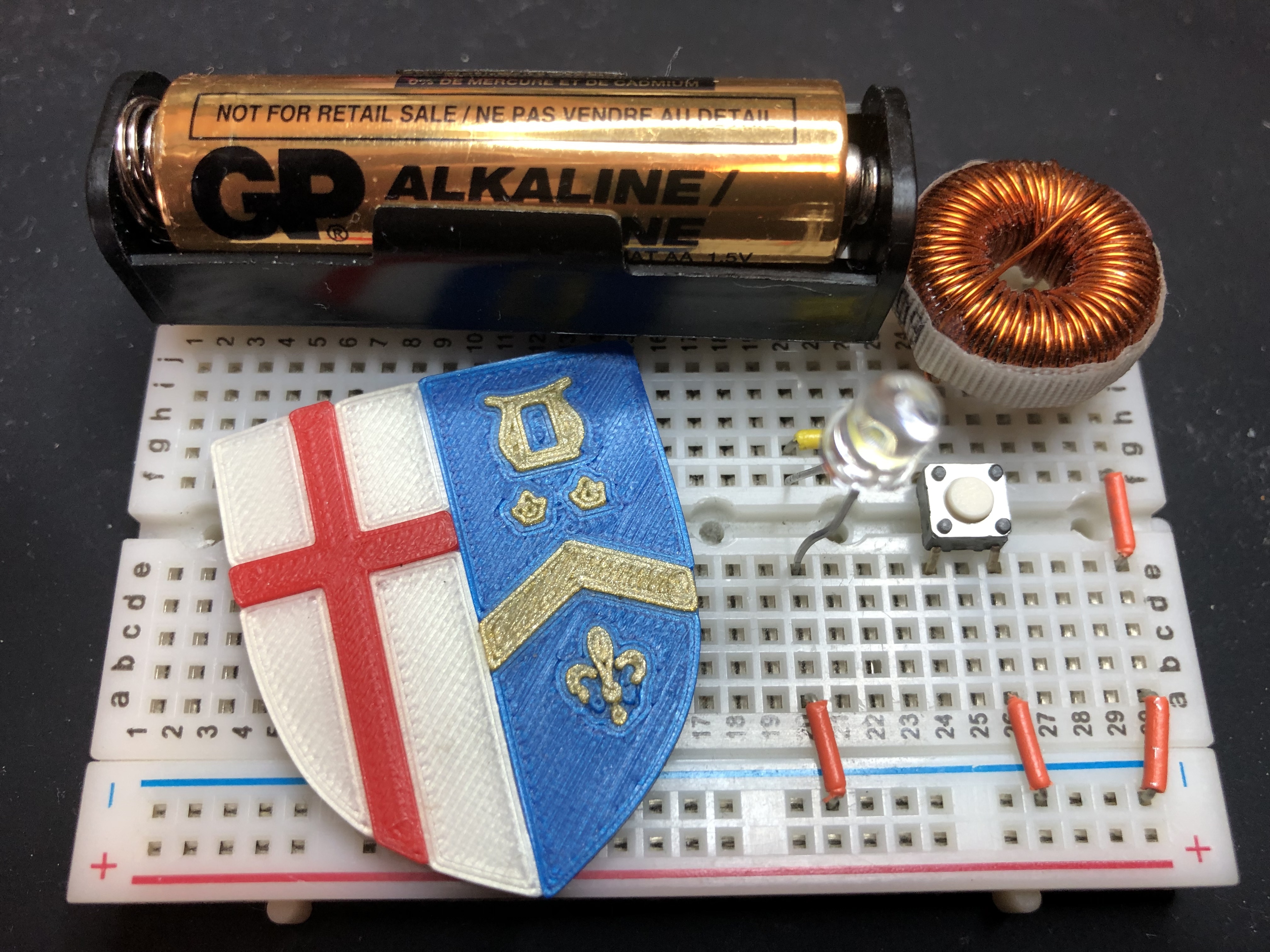

Copper's Reaction to Magnets ![]() ACES Frame Player: Toroid Winding ACES Frame Player: Joule Thief |
1.2

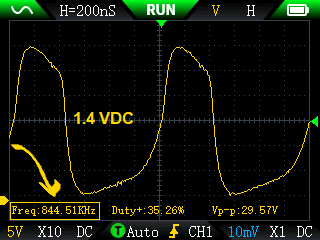

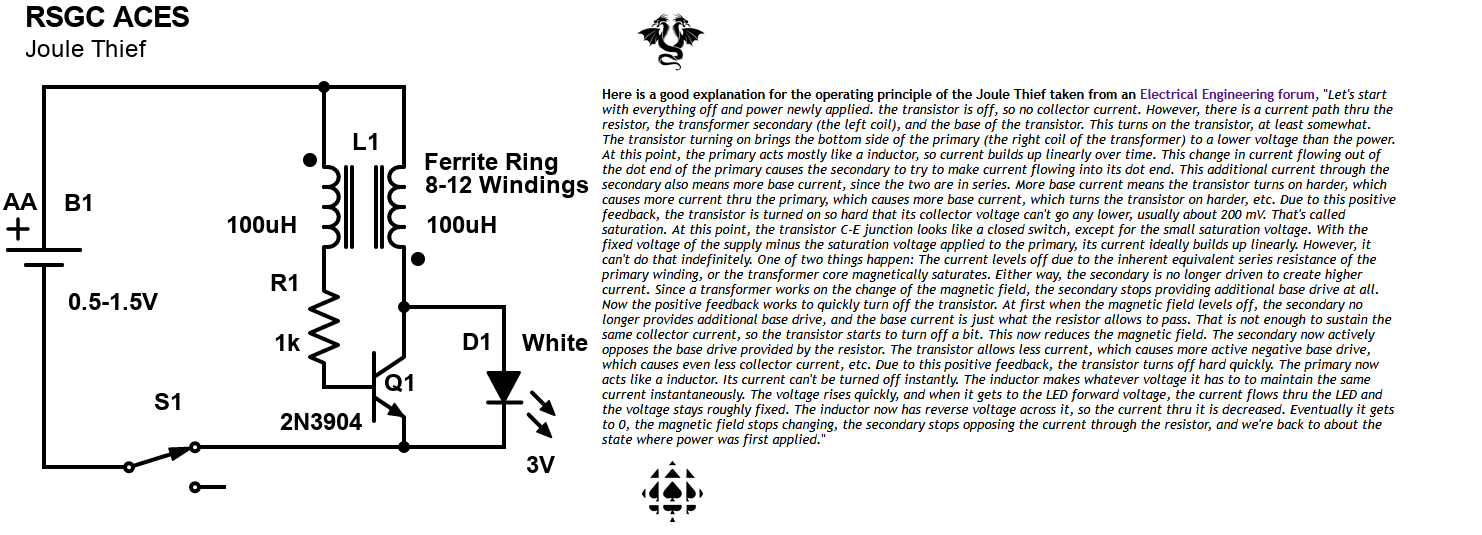

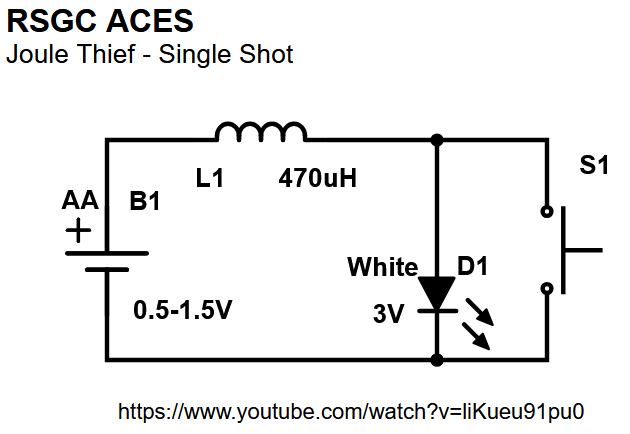

Joule Thief: Continuous ![]() Falstad: Continuous Joule Thief: Frequency ![]() |
||
| EASTER LONG WEEKEND (April 3-6) | ||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
![]() |
||||
21 Apr 1 |
![]() ![]() |
Wait, What?

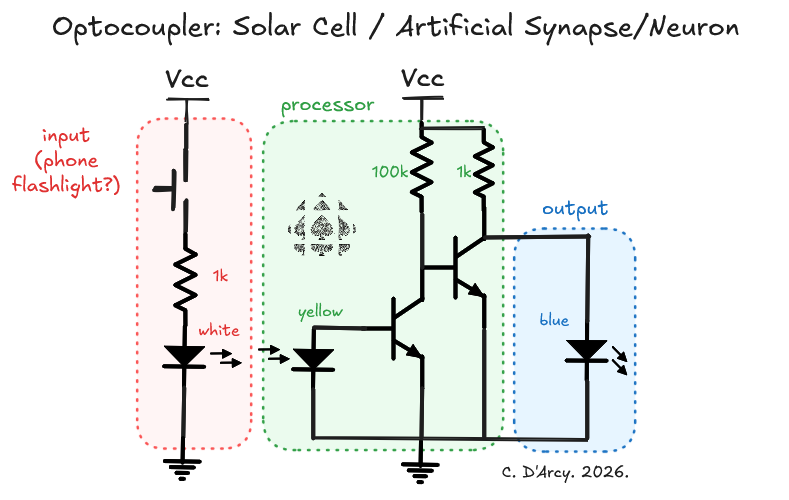

LED as an Input Device ??? Optocoupling (Falstad) Concepts ![]() Created with Excalidraw: Check it out... |
ACES' Analog Oscillator![]() |
|
|
20 Mar 31 |
The device that changed everything... Transistor Basics, Testing, and Switches The NPN Transistor (2N3904): Animation The PNP Transistor (2N3906): Animation TO-92 (BJT) Datasheets: 2N3904 NPN, 2N3906 PNP ACES' Frame Player: Transistors |
|||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
|
Optional |
The Capacitor Visualizer The Capacitor Visualizer Soldering Video Tutorial Case Preparation and Assembly Custom 3D-printed case, heat-set inserts, Panel mount DC barrel jack, hookup wires, heat shrink tubing, 3mm nylon mounting screws |
![]() |
||
|
Exponential Change Growth (Cap. Charging) & Decay (Cap. Discharging) Capacitors as Timers: `tau = R times C` Introduction to the Falstad Simulator |
![]() |
|||
Introducing Delays (TIMING) into our Circuits Capacitor Codes ![]() The Charge/Discharge Circuit ACES' Frame Player: Capacitors |
Tantalum vs Ceramic |
|||
| MARCH BREAK (March 9-20) | ||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
| 17 Mar 6 |
![]() |
Parent -Teacher Interviews |
Asynchronous Day DER Preparation |
AA JB YB* TB* CB AF KG CG HG BK AP EL KP MQ GQ CRA* AS* NS AT* TW HY JY |
| 1.1 | ||||
Header&Footer, Date&Time, Tables, Page Break, Section Break Table of Contents |
1.1
DER Exemplar |
|||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
|
14 Feb 26 |
||||
| 1.1
DER Exemplar |
||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
12 Feb 20 |
Breadboard Layout![]() |
Schematic![]() |
Read it Thoroughly... Project 1.1 Voltage Division: Keypad Voltmeter ACES' Frame Player: Keypad Voltmeter |
1.1 |
p. 24![]() |
Transitioning from.. Analog to Digital from continuous to discrete ![]() |
|||
![]() |
||||
11 Feb 18 |
PBNO ![]() PBNC ![]() |
Buttons (PBNO, PBNC) Circuit Symbols (p. 8) ACES' Frame Player: Buttons (Digital) Button Logic: Pull-Down and Pull-Up Configurations |
![]() |
|
| FAMILY DAY WEEKEND (February 13-16) | ||||
|
ANALOG 1: SIGNALS, SUPPLY, SYMBOLS, SCHEMATICS and RESISTORS |
||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
ACES' Frame Player: Variable Resistors 2. LDR: Light-Dependent Resistor aka Photocell, Photoresistor, Optoresistor 3. Thermistor: Temp-Dependent Resistor 4. FSR: Force-Sensitive Resistor 5. Flex Sensor: Flex-Sensitive Resistor J. Vretenar's: |
Voltage: `V=IR` Power: `P=IV` Circuit Symbols (p. 8) |
|||
9 Feb 10 |
Interactive Circuits :) Fixed vs Variable Resistors 1. The Potentiometer (p. 10) ACES' Frame Player: Potentiometer |
![]() |
||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
Appleyard LED Tester![]() |
||||
![]() |
||||
Using Ohm's Law and Kirchhoff's Laws to Analyze Circuits |
ACES' Frame Player:
LED Circuits
Using Ohm's Law to determine the Current (I) in a circuit : `I=V/R` Ben Eater's ( BeNeater :) |
![]() |
||
| Ohm's Law (in terms of Voltage) Voltage: `V=IR` Power: `P=IV` ![]() |
||||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
5 Jan 29 |
(aka Schematics) Circuit Symbols (p. 8) Our first circuits... ACES' Frame Player: Fixed Resistors Your First Soldering Task (Your Solder Tube) |
|
||
![]() |
α, β, γ,... ALPHA, BRAVO, CHARLIE,... |
Start your Prototyping Skills off on the right foot... Watch B. Eater's: by knowing multiple Alphabets and Languages So, today, memorize the Greek and Phonetic Alphabets found on Page 78 of your DC Circuits Workbook |
![]() |
|
|
4 Jan 27 |
Second DMM Function: 2. Resistance (Ω) Fixed (Current-Limiting) Resistor Applet Our first circuits... ACES' Frame Player: Fixed Resistors |
Where the MAGIC happens
ResistorCircuitAnalysis |
||
| CLASS | REFERENCE | SUPPORT | CONCEPTS | SUPPLEMENTAL |
|
3 Jan 23 |
Where the MAGIC happens![]() ![]() |
|||
|
2 Jan 22 |
Giants of Electricity p.80
Discussion: What is Electricity? The Atom Water Analogies Flow Models (Direction): Electron (Neg →Pos) (Science) vs Conventional (Pos→Neg) (Electronics) |
DC Circuits' Cover Video... G. Davidge's: Foundations: Grade 9 Science... Ohm's Law (in terms of Voltage): `V=IxxR` Ohm's Law (in terms of Current): `I=V/R` |
![]() Alkaline Battery Chemistry |
|
|
1 Jan 21 |
REPUTATION and RESPECT RSGC ACES Mission: Taking a Short, Medium, and Long Term View of your Futures ACES Hall of Fame: R. Jamal '25 Xander Chin ('22), D. Raymond '19 E. McAuliffe '18, E. Peterson '18 M. Elia '15 (Argon Prototypes) |
ACES Focus: Foundations ![]() |
||
![]() |
||||
