ICS3U-E Engineering Tasks


Project 2.?. R-2R Digital to Analog Conversion (DAC)

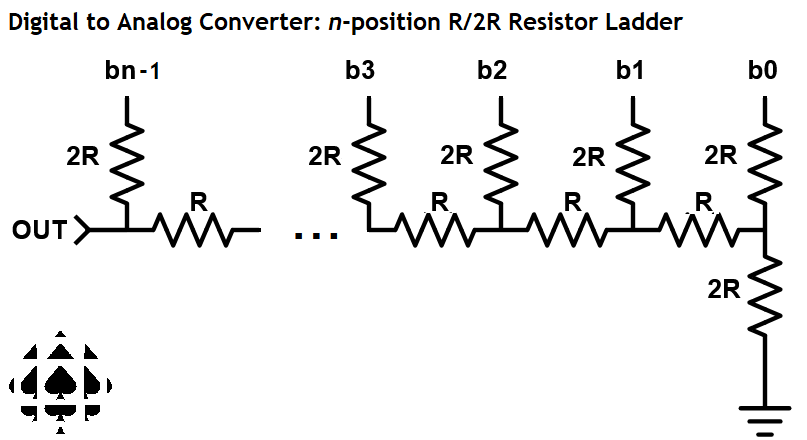

In class your knowledge of resistor networks expanded from the bussed and isolated varieties,

to include the R-2R design (right). You were supplied with such a device in your Session 6 loot bag, the datasheet for which can be found here.

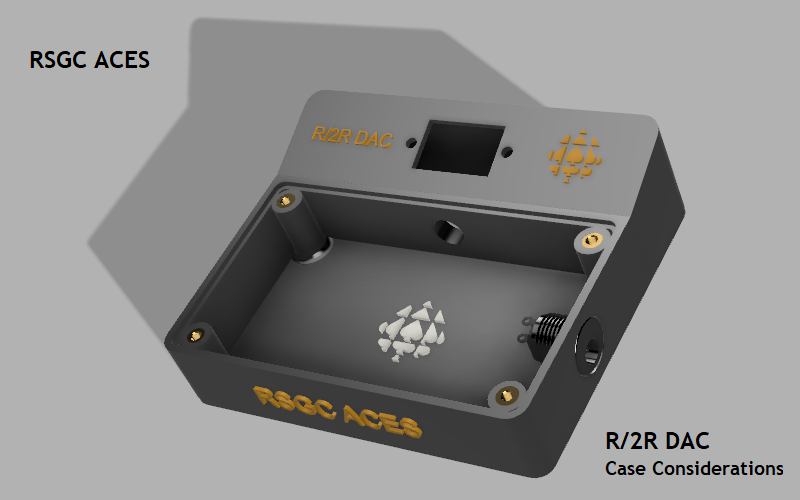

This project asks that you wire up a 8-bit DAC using slide switches and your R-2R ladder to yield an analog output. A DMM or even Analog Voltmeter will be used to confirm the output. It might be a good time to dust of that 12V supply.


Project 2.?b Wireless Control of Project 2.5a

Our final few classes complements our earlier look at wired communication strategies (Serial, SPI, and I2C) by introducing two wireless protocols: Infrared (IR) and Radio Frequency (RF). You are invited to explore Bluetooth on your own should you feel drawn to it. The second part of Project 2.5 requires you to demontrate your competency with one of these wireless strategies in developing a remote control system oover your mechanical prototype developed in the first part of Project 2.5.

1. Infrared Remote Control

Following our brief look at a possible prototype for a universal remote control you may wish to extend the concept by adding additional codes to control your mechanical device.


Fola Folarin (ACES '20, Waterloo '25) chose to develop a surface mount version of an IR remote control for his Medium ISP in Grade 12 (pictured, right). Here is Fola's video that accompanied his DER submission: The DominatIR 2.0


2. Two-Way nRF24L01 Communication

In your possession are a pair of nRF24L01 transceivers. In class you were introduced to one-way communication between two MCUs, supported by the use of these devices to transmit a byte from a base UNO to a receiver UNO.

In this project you have the opportunity to solidify these skills by extending the sample application to support an interesting two-way communication. For example, earlier this year you undertook an exchange between a UNO and a Nano that employed wired serial communication when you complete the ASK,UNO project below. This project offers you the chance to modify that project by employing the pair of nRF24L01 transceivers you have.

Feel free to replace the Nano with a second UNO if that's more convenient and borrow a second breakout board from a peer if necessary.

Project 2.?a Mechanical (This is a 2-part Project - Think Mini-ISP :)

This project provides each of you with an opportunity to pull from all (four) ACES Domains: Software, Hardware, Design, and Communication. With a final term ISP off the table and plenty of time to meet the two remaining deadlines, you have a glorious chance to achieve something of real value that could be a wonderful addition to your university application next fall. These projects have made the difference for many graduatiing ACES in the past by opening the doors of opportunity.

Almost without exception one of your first memories is that of a mechanical/motorized toy you received as a gift and played with endlessly. With luck, you may still have it somewhere, either in your room or a basement toy box. This project gives you the opportunity to revisit some of the mechanical magic you were enthralled with over a decade ago and may consider pursuing in your post-ACES years as a Mechanical/Mechatronics undergraduate.

Our instructional focus explored the mechanics of five common electromechanical devices (solenoid, relay, DC hobby, servo, and stepper motors) shown below. In the first stage of this this 2-part project, you are asked to identify one (or more) of particular interest to you and develop an compelling prototype that exposes both its (no load) capabilities and your command of the many related hardware and software concepts you have become familiar with in this course. These include power supply considerations, MCU control, monitoring, measuring, and display options, and finally some simple design aspects (PCBs, acrylic and/or 3D printing mounting and encasement alternatives). For the truly inspired, a sixth option is offered to you. The common denominator of these electromechanical devices are copper coils that generate a magnetic field. If electrical engineering is still a possible future objective, consider winding your own coil and undertaking research, analysis, appllcation, and remote control over your device.

Solenoid Relay DC Hobby Servo Stepper

The emphasis of this project is on creativity, originality and making the best use of the available resources in front you (components and time) (the only caution I will issue is that if your ISP or previous ACES project involved one of the three motors above, and you a wish to exploit it again, you are expected to take it to entirely new level)

As a starting point for your project considerations, you may wish to review the videos on our course page submitted by the 2020/2021 ICS3U class that were tasked, specifically, with monitoring the speed of their DC Hobby Motor. Here's a link to their project description. Interestingly, their efforts were undertaken with the first month of the COVID pandemic. Browsing a decade's worth of previous ICS3U course pages will bring you face-to-face with dozens more project videos from Grade 11 ACES that have gone before you.

Finally, one of the reasons I require ACES to document their achievements in text and media (and painstakingly archive their work) is to have them available for inspiration for current ACES to use a springboard for their own accomplishments. Josh Dolgin's Bi-wheeled Rover and Jasper Schaffer's Rubiks' Cube Solver (both undertaken as Grade 12 ISPs) are pinnacles of high-school project achievements you can exploit to open the doors of your admission to University Engineering programs, this time next year.

, or Project 2.? I2C Data Logger

Combine the proliferation of time-dependent sensing devices with the increased frequency of power disruptions, and you make a strong case for robust embedded systems to feature built-in logging functionality. Commercial Data Loggers such the one pictured (below, right) are readily available but can impose significant cost and form requirements. ACES can engineer better.


  1. You are asked to create a device that exploits I2C communication in the logging of the ambient temperature of an environment for a single 24 h period, as frequently as your hardware storage capacity will permit.
  2. Each data point will include fields for both the temperature in Celsius and the time in hours, minutes, and seconds.
  3. You are to use either an ATMega328P (UNO, Nano, or offboard) ATtiny84, ATtiny85 (you have one of each of the first two in your kit; I can provide your with an 85 if that is your preference) or other I2C supportable MCU that will compile within the Arduino IDE at my end. I may need to confirm your code.
  4. For the timestamps you are to use the IC2-friendly DS1307 that you have.
  5. For the temperature you are to use the IC2-friendly TC74 that you will be provided with.
  6. For the (EEPROM) data storage you have two options:
  7. Your embedded system will provide a facility (second sketch?) for reading and displaying the logged data. You can think of a number of solutions capable of presenting character/graphic data ranging from the Serial Plotter (Bronze or Silver), character or graphic LCD, Processing, Excel, and on and on...
  8. For the display of the data you may wish to consider the versatile I2C-friendly 0.91" OLED display driven by the SSD1306 Display Driver IC. Adafruit has a library and tutorial with some compelling graphic examples. A good working instructable (using only the Wire library) can be found here: https://www.instructables.com/Driving-an-OLED-SSD1306-Display/
  9. Think COMPACT when designing your data logger system.
  10. A case (Silver or Gold). Wow! Pro.
  11. Here's an I2C representation of your possible ACES Data Logger system...

Your review of the DS1307RTC datasheet indicated that the IC has 56 Bytes of on-board non-volatile memory (NV RAM) spanning addresses 0x08 through 0x3F. This memory is a viable candidate for data logger storage location (Silver only) or an embedded system in the event of either a system or power failure.


As I've indicated in the past I believe the path to the best version of one's self MUST include choice. ISPs are the primary vehicle ACES use to follow an engineering path you're drawn to. Within THIS project there are similar paths you can take in pursuit of its primary and secondary objectives. On the spectrum below assess where your current situation lies (available time, interest, motivation, passions, etc...).

GD assisted me with designing your project choices/options. On Tuesday January 31 you will be asked to commit to one.
This will allow each of you to gain a measure of benefit while fitting with your time, motivation, and interest levels.

MAXIMUM MARK 9.0 9.5 10.2
MCU mega328P mega328P, tiny84, tiny85 Your Choice
(Arduino IDE)
Number of I2C Devices 2 3 4 or more
Wire.h Yes Yes Yes
Third-Party I2C Library Use Tes Optional No
EEPROM mega328P MCU, DS1307, or 24LC256 24LC256
Arduino EEPROM.h Library Yes Optional No
GRAPHIC Data Display Serial Plotter Any Processing or
Excel or
Graphic OLED
Board Breadboard Any Soldered
Encasement No Optional Yes
HID Controls No Optional Yes

Requirements Consistent with your Project Choice

  1. Develop an embedded system that schedules and records temperature readings for a 24 h period to EEPROM (NVRAM)
  2. Temperature data are to be timestamped (hour, minute, second). Decide where, when, and how to record the data. Optimize.
  3. Your system can read and display the logged data upon request.
  4. For Gold enthusiasts, review the multitude of features of commercial data loggers for inspiration: lots of options
  5. REPORT. By the deadline complete and submit a comprehensive DER on this project.


RSGC ACES' DS1307 BoB V2 (2021) RSGC ACES' DS1307 BoB V3 (2022)

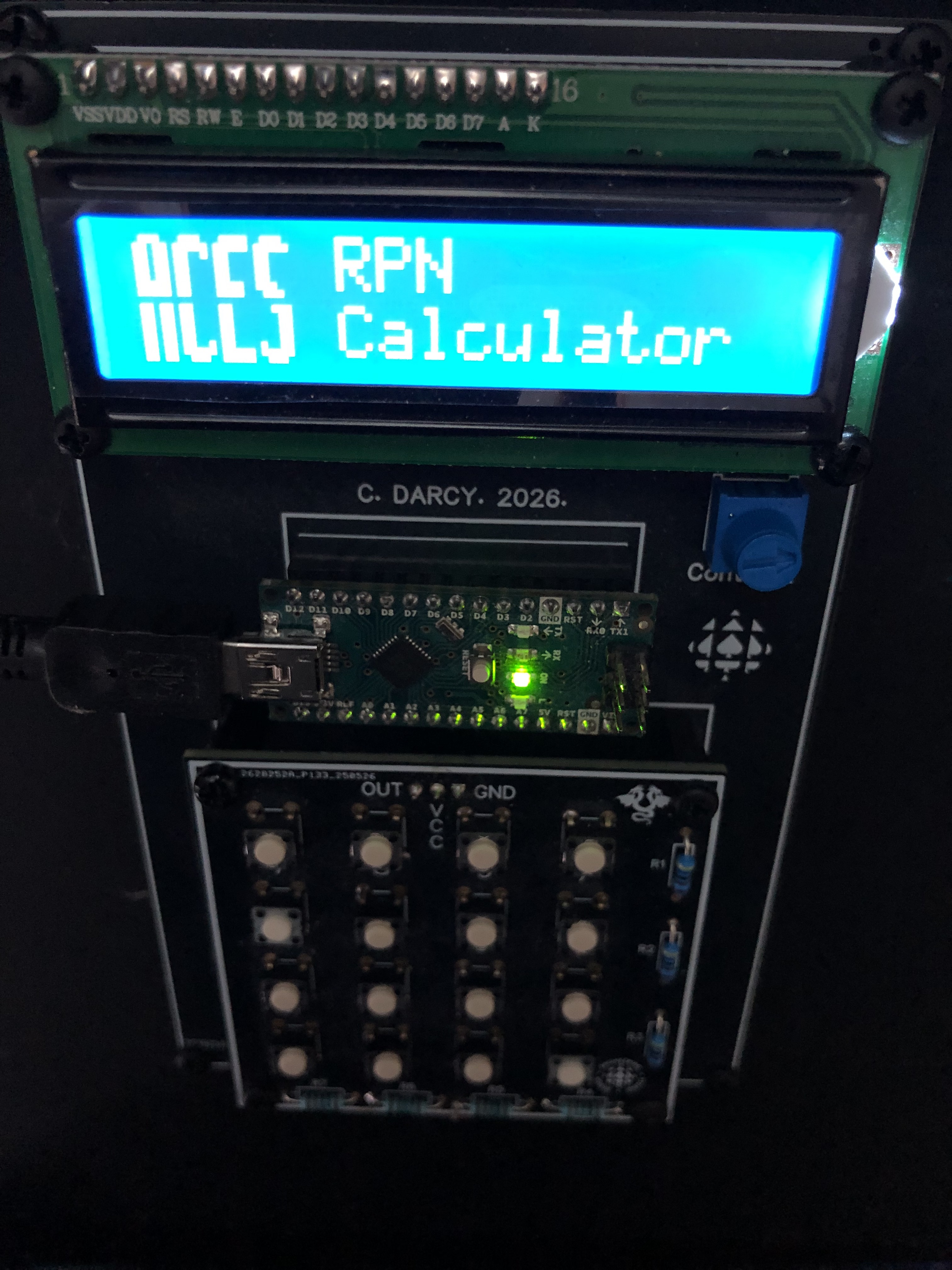

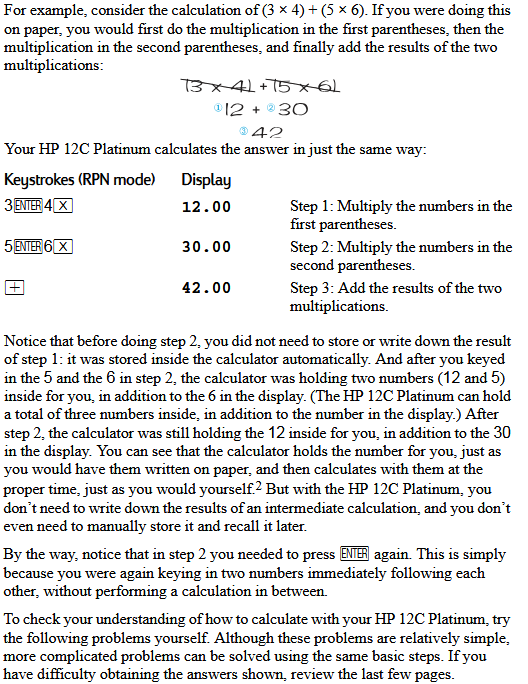

Project 2.? Numeric Coprocessor.

The brain of an embedded system is the primary MCU. A (CO)processor is (was) a secondary processor specially designed to perform efficient floating point calculations. To be developed...

Project 2.?c Perma-Proto ATmega328P with PCB. Most (all?) ACES projects combine required elements with creative latitude for students to demonstrate competency in both areas. It is your teacher's belief that your careers will demand this of you. This project is representative of this hybrid pairing.

The goal of the embedded system designer is to engineer a real time, in-system programmable (ISP) and functioning MCU-based device, housed in a physical and electronically-stable case. This project gives you your first attempt at creating such a device (and sets your design ideas in motion for our custom PCB and CAD design journey in the weeks ahead)

The ULTIMATE GOAL of this project is to create a mounted, standalone, sensor-based, In-System Programmable (ISP) (MCU reprogrammable without removing it) device driven by the same MCU at the core of the Arduino, AVR's ATmega328p that was secured to a 3D Printed ACES Stand in Stage 2 of this project series.


Now, with your EAGLE PCB skills at the ready, your task is to design and engineer one or more PCBs that integrate into your functioning perma-proto platform. You are encourged to think of your existing platform as a motherboard control system and what you design in EAGLE can be aptly referred to daughterboard plugins. Designing your daughterboards with male headers that plug into female headers you can add to the motherboard gives you maximum flexibility for testing back on the breadboard version of this project and allows you to go back to JLC or other CAM house for improved versions of your PCB devices.

Also keep in mind the underside of the ACES Perma-Proto Stand was designed to be open for easy access to the underside of Perma-Proto ATmega328p half-size PCB. There are a lot of flexible options here for your creativity.

I'm sure you'll think of a more optimal layout. Just remember, those 30 columns are precious, so make the best use of them as your design skills will permit. Finally, I am of the opinion that the most successful projects are the ones in which the designer/engineer has a clear image in his or her head and a reasonably accurate drawing on paper. This is one reason I ask ACES to include a hand-drawn sketch with their ISP proposals. So, consider engineering this project in reverse by reading all three project stage descriptions and prototyping backwards.

Submit your full report by the deadline. Enjoy the world of possibilities this project opens up.

Project 2.?b Perma-Proto ATmega328P

ACES' ATmega328P Perma-Proto Half-sized PCB
Rendered View RSGC ACES 1/2 Perma-Proto Kit
  1. Supplemental (Basic) Parts List for 2.4
    # Description
    1 RSGC ACES Perma-Proto 1/2 Sized PCB
    1 28-Pin Kinked IC Socket
    1 2 × 3 Shrouded ISP Header (Wurth)
    Supplemental (Conditional) Parts List for 2.4
    # Description
    1 RSGC ACES 1/2 Size Perma Proto Mount
    1 2.1mm×5.5mm Schurter Power Jack
    2 M3 5 mm Nylon Screws
    1 Coloured PBNO with Leads
    * Heat Shrink Tubing
    GOAL. The goal of Project 2.4 is to create a permanent (soldered), functioning, in-place programmable ATmega328P-based prototype of your circuit in Part 2.3, that is securely fastened onto the ACES 1/2 Size Perma-Proto Mount that is provided to you.
  2. ACES ATmega328P HALF-SIZE PERMA-PROTO PCB. The outer dimensions of your ACES' ATmega328P Half-Sized Perma-Proto PCB are based on Adafruit's open source Perma-Proto 1/2 Sized PCB. Review the dimensions, holes (front and back) noting in particular, which hole sets are continuous or not. Also review Adafruit's Perma-Proto Tutorial on working with perma-proto materials. Our custom board had adopted numerous efficiencies that simplify the development of a functioning ATmega328p MCU system. Click on the Board View above right and study the traces, additional SMT components and layout. Failure to do so will likely lead to disappointing and time-consuming results.
  3. FULL LAYOUT. Using a combination of the parts in your kit and some of the supplemental parts listed to the right, lay out your components on your perma-proto PCB to get a spatial sense of the device you are about to make permanent.
  4. SOLDERING. Take considerable care with stage as replacement parts will not be supplied by Mr. D.
  5. TESTING. Upload the Blink sketch with your SAPP. Debug as necessary.
  6. (CONDITIONAL) PERMA-PROTO PCB MOUNT. Once you have achieved a working, SAPP programmable perma-proto PCB, demonstrate it to Mr. D. to receive your Conditional Parts listed to the right. The expectations on receipt of this components are that you correctly assemble and preset the working platform in your DER.
  7. REPORT. By the deadline complete and submit a comprehensive DER on this project.
ACES' ATmega328P Perma-Proto Half-sized Kit (PCB and Mount)
RSGC ACES 1/2 Perma-Proto Kit System Functioning System


Project 2.?a Breadboard ATmega328P. With a term's worth of introductory awareness of the Arduino's capabilities, it is time to strip the MCU from the convenience of well-appointed development boards (UNO, Nano, etc.). By placing the ATmega328P DIP28 IC into an empty breadboard and bringing it to life, you come to appreciate the minimal set of supporting components required to support embedded systems of your own future designs. Familiarity with minimally-design systems helps to reduce costs and maintenance. Furthermore, this project is the ideal segue to designing your own custom PCBs for your ISPs.

An underlying objective in this new, three-part project (culminating in late February) is to expose you to inseparable interconnection between Design and Engineering. The first stage begins as you have become accustomed, with a breadboard prototype of a standalone MCU circuit. The second stage, the control system, gives your circuit a sense of permanence using components custom designed for ACES in EAGLE and Fusion 360. Engaging these components is intended to provide you with ideas and design possibilities for your own ISPs that you will be introduced to later in this course. The third stage is where a custom PCB of your own design integrates into your stage two control platform for what can be decribed loosely as an Embedded System.

  1. Project 2.3a Breadboard ATmega328P. Functional and programmable MCU prototype on a breadboard running a system of your choosing that you will translate into a PCB in Stage 3.
  2. Project 2.3b Perma-Proto ATmega328P. Functional and programmable MCU prototype on a breadboard running (at least) the Blink Sketch
  3. Project 2.3c Perma-Proto ATmega328P with Custom PCB. Functional and programmable MCU prototype running a custom PCB system based on Stage 1.

Read this Standalone ATmega328P Primer

Read this (Previous Year's) Comprehensive Backgrounder on a similar Project


  1. Based on the experience of dong the same earlier in the course assemble a functional and programmable ATmega328P system of your choosing. You may wish to imagine the PCB you will design and have manufactured in February as the basis. Keep it simple.
  2. Be sure to add 5V regulation to your system. and test with your 9V AC/DC Adapter from Grade 10.
  3. Include the Reset capability and anything else you think is important.

Project 2.6. A Tiny Clock. for 2023/2024.

Reference: A Tiny Clock

Project 2.6.1 Inter-Integrated Communication (I2C)

After a brief introduction to Project 2.6 A Tiny Clock, the first subsection of reporting will introduce the I2C (Inter-Integrated Communication) Bus. The bus will include your breadboarded DS1307 RTC and the TC74 temperature sensor. You can simply use the I2CScanner code to confirm that the two devices on your bus are addressable. Submit by the deadline.

Project 2.6.2. Real Time Clock (RTC) Prototype

Much of the foundation for our clock has been established. It's time to put these concepts to work on a breadbaord under control of your ATtiny85. The 8-pin DIP IC offers only 5 digital pins whih is just enough. Two pins (SDA & SCL) )will be allocated for input/outout communication with the RTC and three will find themselves driving the output through the use of the shiftout function.

Your COM-09481 4-digit, 7-segment blue display from Sparkfun is of the Common Anode variety. These are a little trickier to drive than the common cathode 7-segment display that you used last year in your Counting Circuit or the matrix driving from earlier this year. Supply must must provided on the high side and there aren't any inexpensive ICs that provide this function. The most inexpensive solution is to use PNP transistors to drive the Anode pins in support of POV software strategy. Four pins of one 74HC595 can control the base pins of the BJTs and seven pins of a second 74HC595 can sink the current on the cathode pins through resistor networks.

Wire this up as far as you can on your own for our first class and we'll spend the rest of the time writing and testing our software to display the time!



Project 2.? A Breadboard RTC. One of the advantages (and privileges) of running a program of our own design like the RSGC ACES program is that I get to continually adjust my curriculum to meet the immediate needs of my students and many dynamic challenges beyond our control. After the previous Persistence of Vision project, you all needed to make adjustments to the full project development cycle, particularly the final reporting phase. I was thrilled with the way you responded to our post-project discussions last week and I want to acknowledge and reward your efforts. So, here's how I intend to do this.

Our class-time last week and this week are invested in exploiting your PoV experience in the development of a breadboard-based, real-time clock system. Not only does this pursuit introduce you to an important (wired) communication protocol (Inter-Integrated Communication or I2C) and a number of other essential techniques and skills, but the process provides a useful model for your own first personal ISP undertaking over the next two months.


Continue to follow along closely with our in-class development of a breadboard clock prototype, noting and documenting (media) the numerous stages and concepts that are brought together to produce your working.

This (Friday and) Saturday, assemble our mutual experience into your own unique DER presentation while adhering to hundreds of details and expectations provided in the previous months in our program. To capture the highest credit possible you will pay close attention to both the individual and group feedback comments that have been provided to you. To this end, you are NOT to simply wear out a path to my desk this week seeking multiple assurances that you are doing things to the letter. Doing so will only reduce your eventual credit. You are all capable of completing the reporting task ON YOUR OWN or with the OCCASIONAL query to a TA.

Make the most of this opportunity.

Project 2.? Persistence of Vision

(Reference: AVR Foundations: pp. 35-38). It's strange to think that our eyes perceive much of the LED lighting around us to be uniformly ON, when they are actually OFF as much as half the time (maybe this is one of the reasons LED lighting is so cost-effective?). The next time you're in the DES, point your phone's camera at the digital clock and observe the interference bands generated by clock's display alternation and your camera's periodic scan rate.

Perhaps the most remarkable ACES PoV creation was engineered by K. Fiset-Algarvio (ACES '19, Guelph Mech. '23) in his amazing Grade 11 ISP: The Persistence of Vision Globe. Above are two images extracted from his DER. Be sure to watch his detailed video.

You have been given a dual 14-Segment Dual CC Alphanumeric Display. An image of the device appears below, left, in which I have coloured a few segments to simulate a 'possible' depiction of the two-letter word AS. Here's the link to its datasheet so you can familiarize yourself with its pin layout. Given its 14 segments, this component can be driven by two SN74HC595 shift registers* and a pair of transistors (one NPN and one PNP) under control of a SINGLE square wave (bottom, right), in a Persistence of Vision scheme.
*Although the ATmega328p has enough pins to complete this task without using shift registers, you are required to do so, for practice.

BASIC Task. (Adapted for 2020-2021)

  1. This project requires you to combine a number of recent hardware and software techniques introduced in class to produce an alphabetic PoV display of letters entered by your users through the Serial Monitor's input text box. In particular, you will employ only TWO Shift Registers and the square wave alternation circuit above, to affect a Persistence of Vision strategy on your dual display device.
  2. Be sure to have available a complete 26-element array of type uint16_t that defines the segment maps for each uppercase letters from A to Z. The organization of the segments will have to match your wiring to the segments to be effective. These array definitions are typically called Lookup Tables or, simply, LUTs.
  3. Create the Arduino project, PoVWord.
  4. Within the project sketch of the same name, develop code that will call upon your LuT to echo the two-letter input from the user on your dual 14-segment display device.
  5. You do not need to implement the decimal point unless warranted.
  6. You can assume users enter two letters only, however your code must be prepared to change a lowercase entry to uppercase prior to its display.
  7. Be sure to FULLY document your (efficient and original as possible) code and attach POVWord.ino to your submission as the second attachment, along with your DER.docx file.

For the ambitious, consider the following any or all of the following. If you implement any enhancement add a section on you DER entitled Enhancement and document your creative extension(s).


  1. Software comfortable ACES may wish to dive deeper into the Arduino String library in support of allowing users to enter more than two characters and have them scroll across your display.
  2. Fans of the Periodic Table fans may wish to create a LuT with each elements' 2-letter symbol (a space is a character) and allow users to enter the number of the element (echoed on two 7-segment displays). Your code would present the elements' symbol on the dual 14-segment display.
  3. There are many more ASCII characters than the uppercase letters. Consider, for example, enlarging your LuT to include the additional lowercase characters. Note: the ASCII Table inserts 6 characters between the uppercase letters [65,90] and the lowercase letters [97,122].
  4. Use Write14SegASCIIEEPROMKWA-541XPGB.ino code to populate EEPROM as a means to eliminating the need to define your LuT every time in your application code. Be sure to include this additional EEPROM code in your DER and attach it to your email.
  5. Lots of other ideas for the imaginative....

Advice (trust Mr. D's experience)

Project 2.?. Persistence of Vision. For his PCB project in Grade 11, Hugo Reed (ACES '19, Queen's '23) imagined, designed, and developed a handy PCB that future Grade 11s could exploit to hone their LED matrix animation skills. We're going to incorporate Hugo's terrific little device into a creative implementation.

Parts List for Hugo's MatrixMadeEZ PCB (all can be found in your toolkit),

The header will enable your device to be mounted vertically in your breadboard, driven by your official (or breadboard) Arduino, or even an ATtiny84 or ATtiny85. Note. this is NOT an appliance for the UNO as there is no 5V access on the digital pin side.

Basic Task

  1. Using the exposure gained through hardware and Persistence of Vision software techniques introduced in class you are asked to imagine and implement your own creative animation on your MatrixMadeEZ V3 device.
  2. Design-inspired ACES should feel free to exploit the four M3 mounting holes to imagine and encase a housing for your PCB. ACES Design TA (2022/23: Seb Appleyard) can offer guidance after school in this area.
  3. Requirements for this project's PoV animations MUST include the use of EEPROM for the storage and retrieval of image data (fonts &| graphics) and the TimerOne library for control of the frame speed.
  4. Remember: Do NOT upload your video using your RSGC Account (use your own personal account) and submit your DER by the deadline.
  5. Make Hugo proud!

Enhanced Task: Etch-A-Sketch

  1. Using your (loaner) Thumb Joystick as the 2D input device...TBD.








Project 2.? 74HC595 Shift Registers

The NCC offers (relatively) hassle-free hardware and software access to the I/O pins of the Nano (ATmega328P). Your teacher believes a month-long investment in the device addresses student background H&S deficiencies of the past and, in turn, pays handsome dividends in the projects to come. Two tradeoffs of the past few weeks, however, are that your wiring/prototyping skills may have oxidized and, more importantly, in practical terms, tying up 16 MCU pins to simply address 16 LEDs, is massive overkill. This project addresses both shortcomings and offers you an opportunity to showcase your newly-acquired H&S skills.

As stated, the NCC's 1 : 1 PIN : LED pairing is an expensive design strategy. The NCC device maps 16 pins to 16 LEDs. Fortunately, there are numerous strategies for optimizing this ratio, the most popular of which is to extend the number of MCU pins through the use of a device known as a Shift Register. We'll use the 74HC595 Serial In Parallel Out Shift Register IC. Through this strategy, you will 'design better' in that only 3 pins will be required to address 16 LEDs. As you will also come to realize, the 3 : 16 PIN : LED ratio can be extended to 3 : n when n is (somewhat) unlimited!

The (COMMON) hardware layout for this project appears in the Fritzing diagram below. With the exception of the two resistor networks that will be provided to you, all of the parts shown are already in your possession.


  1. The dual purpose of this project is to demonstrate your H&S skills in addressing 16 LEDs that result in a creative optical display of your choosing and to prioritize prototype build quality.
  2. With your software archive of NCC exercises as a reference, you will develop efficient code to drive your display.
  3. Create an Arduino project entitled, 74HC595. Keep in mind the (GREAT) coding strategies we have encouraged as you develop and optimize your software.
  4. Assemble the major hardware components of this project on a breadboard as shown above.
  5. Your wiring skills will contribute to the credit awarded for this, and all future projects. NOTE: We've left the hasty, loopy, random-coloured wiring strategies behind in Grade 10. The Solid 24AWG coloured wire spools on the table near the 3D printers are yours to use as required. Only take what you need, of course. You have the tools (cutter and stripper) in your kit.
  6. Wire 3 digital I/O pins from the Nano to the 74HC595 shift register pair to provide Data, Clock, and Latch signals.
  7. Wire the 595's outputs to the rightmost 16 LEDs of the bargraph pair. Use the two bussed SIP11 resistor networks
  8. The potentiometer serves to provide users with a mechanical means to brighten or dim the LED display on the bargraphs.
  9. Check out this RSGC ACES video of (poorly-wired) bargraph animations: Bargraph 8_16 Scrolling
  10. Attach your fully documented 74HC595.ino code and DER.docx files to an email to ACESHandin by the deadline under the Subject Line: 74HC595 Shift Registers.


Project 2.? Traffic Light

Since many of you will be pursuing your driver's license in the near future, the focus of this first project is the careful soldering and QUALITY programming of a standard traffic light. Jasper Schaffer (ACES '18, Queen's '22) was in his ICS3U year, when he designed the handy little PCB pictured to the right that has been the recent tradition of the first project of the ICS3U of the ICS3U year. For the assembly aspect of this project you will solder one each of a green, yellow, and red 10mm LED and a four-pin right-angle header from your toolkit onto the Schaffer Traffic Light PCB you have been provided with. Take care as there are NO replacement parts. The right-angled male header pins allow your device to be inserted directly into adjacent female port pins on your Arduino (eliminating the need to use a breadboard and hookup wires). ACES refer to these kinds of PCBs as appliances. Be sure to document your soldering of the device through media acquisition from your phone that you can include in your Report. For the testing aspect, you will include media as well as a well-planned Arduino sketch (program) modified but based on our discussions and models in class. The fully documented sketch should cycle through the LEDs continuously with the green and red remaining on for four times the duration of the yellow (amber) LED.

In your Report, you are include the Purpose, Reference, Procedure, Code, Media, and Reflection subsections in Heading 2 style. A full Parts Table, with background shading consistent with your previous ICS2O colour theme and width of 3" and should appear right-aligned within the Procedure section. Finally, ensure that no content is allowed to spill into any of the four page margins. For this first submission, I will review the requirements and techniques for inserting syntax-highlighted Arduino C Code into your Report in class this week.

Attach your DER.docx to an email (from GMail) to ACESHandin@rsgc.on.ca with the Subject: Traffic Light, by the deadline.


Project 2.? BCD to 7-Segment Emulation (Optional)

The CD4510 and CD4511 ICs are a terrific matched pair. The CD4511 BCD to Decimal 7-Segment Decoder is an integral component in last year's Counting Circuit project. The four inputs lines DCBA (8-4-2-1) were put through the internal combinational circuit that yielded seven outputs (abcdefg) that drove the common cathode 7-segment numeric display. A representation of the internal circuitry appears to the right (a similar schematic can be found in your DC Circuits Workbook).

On the other hand, for some reason the industry has not seen fit to provide a similar match for the CD4516. Why is there no CD4517 IC? For the inputs 10102 to 11112 the CD4511 simply blanks all segment outputs. In this task you will address this deficiency in software emulation.

An additional combinational logic circuit for the hexadecimal digits A through F (10102-11112) has been prepared for you. Click to view the circuits and manually confirm, by hand, one or more segments for a given set of inputs.


  1. In the manner of the recent software emulations of the Full Adder and 1-Bit Magnitude Comparator circuits, develop the Arduino C sketch 7SegmentEmulation.ino that performs a software implementation of the two combinational circuits (0-9,A-F) using C's logical operators (NOT, AND, and OR).
  2. Your code should display the digits in sequence, continually.
  3. Submit your report by the deadline under the requested Subject Line.

Finally, for the curious, the process by which combinational circuits producing a set of outputs can be determined for a given set of inputs involves a process developed in our Grade 12 ICS4U-E course.


(2022-2023) Project 2.? Nano Coding Companion

Having completed the numerous examples prepared for you, you are asked to create an interesting demonstration of your own that exploits the capabilities of the Nano Coding Companion.

Your example should make maximum use of the onboard assets of the NCC. Analog pins A3 through A5 are available for your application however the Arduino C library does not support A6 and A7 as these pins are not present on the DIP-28 package (UNO) of the ATmega328P.

A premium result will reserved for software that reflects both the great coding concepts discussed in class and hardware efficiency.


(2023-2024) Project 2.4 Binary Game
Since you are familiar with our ACES' Binary Challenge Game, it provides an appropriate model for your developing software domain. We'll start with simple Input and Output in Part 1 of this Project. Should this prove to be a compelling undertaking for the majority of students, we can either extend it further in subsequent project parts or one or more of you may wish to take it on as a multi-domain ISP pursuit.

Part 1. Input/Output

The Human Input Devices (HIDs) of our ACES' Binary Game unit is achieved through a bank of 8 independent rocker switches. The states of the switches are echoed in 8 blue discrete 5mm LEDs. In this first stage of the project you are asked to recreate the basic I/O principles as a breadboard prototype.


  1. Create the Arduino project sketch, BinaryGame.ino.
  2. Condition the 8-position rocker switch bank in pull-down configurations using your 8-position 1K bussed resistor network.
  3. Develop code that will continually (no delay) monitor the state of the switch bank.
  4. Your code will assemble the state of the 8 switches as an 8-bit binary value (uint8_t). For this you are encouraged to familiarize yourself with the Bit Math operators mentioned in class.
  5. Report your 8-bit value on your Serial Monitor, in binary.
  6. Your 8-bit value will also be echoed on your Morland Bargraph.
  7. Comment, format and include your syntax-highlighted sketch in the Code section of your Report, within a single-spaced, light gray background shaded, Courier 9pt, tab-aligned table.
  8. Enhance the project as YOUR skills and creativity permit.
  9. Submit by the deadline.

Part 2. To Come (possibly...)

(2023-2024) Project 2.3 Multi-Bit Memory (Register)

The D Flip-Flop (DFF) is an example of the smallest unit of computer memory. It can 'store' 1 bit of data. Larger units of memory can be assembled by configuring multiple DFFs to act in combination. Multi-bit data storage units are called registers. The D is said to refer to Data or Delay. I'm not sure which is correct.

The graphic to the right depicts an example of one design for 4 bits of data (nibble) acting in coordination. Closer examination of this particular design reveals that on a single rising clock edge, 4 bits of data can be input into the register, in parallel!

In this project, you are asked develop a breadboard prototype circuit consisting of 8 DFFs to input 8 bits of data, serially, thereby creating an 8-bit register.


  1. First off, this is a 5V circuit as it uses the SN74xxxx TTL series ICs. A 9V supply will damage these ICs.
  2. You have been provided with four SN74HC74 Dual D-Type Flip-Flops ICs to act as your 8-bit storage register. You are not required to build this register from lower-level logic gates,
  3. The graphic top right depicts a parallel input register whereas your prototype will be of serial input design as shown in the second graphic. Specifically, on each rising or positive edge of the clock pulse the new bit of data awaits the D input of the first DFF while its stored data bit (Q output) will be shifted to the D input of the subsequent DFF, and so on. The number of bits that can be shifted is unlimited.
  4. For the clock input, you will use your 555 Timer IC in (debounced) Monostable mode. For the serial transfers to act in unison, ALL clock inputs are to be wired in parallel.
  5. For the data bit to the first DFF, a pulldown button will suffice. You needn't concern yourself with debouncing this input.
  6. LEDs are to be placed on the Q outputs of each DFF for confirmation that your serial inputs are being transferred correctly on each clock pulse.
  7. All DFFs will share a common (Active Low) Clear signal enabled by a single pullup button.
  8. Your DER video will show at least two different 8-bit binary values serially shifted into your 8-bit memory register, with confirmation of the Clear function between the two.
  9. Use your imagination. There is plenty of latitude for creativity in this project, so think out of the box. Strike a good balance between the hardware prototype and the research/theory presented in your Report.
  10. Submit by the deadline.

Project 2.2 The 555 Time Machine


For those students anticipating an undergraduate program in computer or electrical engineering I can think of no better project to engage early in your second ACES course than this one. Digital (and Analog) signals are the backbone of both of these branches of engineering and the venerable 555 Timer IC that has underpinned countless interesting projects for over 40 years provides numerous insights when explored in detail. As a black box, this IC can provide square wave (clock) output, in either monostable or astable mode, with varying frequency determined by the use of one (or two) program resistors and a capacitor.

Falstad provides marvelous animations that introduce you to, not only to the 555 output, but the internal architecture required to produce it. It is this simulation that you are asked to replicate in this first project of your Grade 11 year.

References and Research



  1. As I said from the top, this circuit is an excellent bridge from Grade 10 concepts and an important one to prototype at least once in your life. The insights it offers should inspire future ISP project choices.
  2. For starters, prototype a tight 555 circuit at one end of an empty breadboard using one of the two 555s, in Astable Mode, from your kit (you received one in your Grade 10 kit, too) to demonstrate a flashing LED on pin 3. You can use Eater's example or work up something more creative. As mentioned keep your build simple and tight.
  3. After sufficiently detailed research, on the same breadboard as your build from Step 2, you are to create an equivalent mid-level circuit as the Falstad schematic to the right exposes (click on the image for the insightful animation). For both versions of same circuit you are not limited to Falstad's choice of the R1, R2 and C1 program components. You may even wish to replace R2 with a potentiometer to highlight output signal frequency variations.
  4. From your toolkit you will employ the CMOS 4001 NOR Logic IC to create the SR Latch, the LM358 Dual Op Amp to create the comparators and your CMOS 4069 Inverter to rectify (strengthen) your output.
  5. Feel free to enhance your Report in any additional creative way either through signal monitoring, mathematical analysis, Falstad simulation, or interesting application.
  6. Attach your DER.docx to an email to ACESHandin with the Subject: The 555 Time Machine by the deadline.

For those that complete our full ACES program, next to your Secondary School Graduation Diploma,
your DER will be your most important high school document.
The two of them will open the doors to your careers.
Take great pride in your craftsmanship of your DER; you'll be pleased you did.

Project 2.1 Digital-to-Analog Conversion: The R/2R Resistor Ladder

First, make the following edits to your DER,

  1. Add ICS3U-E to your title page after ICS2O, separated by a comma, of course.
  2. Insert a Next Page Section Break at the end of your Grade 10 ICS2O reports
  3. In the middle of the (divider) page type ICS3U-E, in large font, centered on the page. Suspend the display of the header and footer on this divider page (Hint: Next Page Section Break - Different First Page).
  4. Insert another Page Break.
  5. Adjust the new header to reflect the ICS3U-E course code, but continue the page numbering in the footer.
  6. Begin this year's submissions with a report entitled, Project 2.1 Digital-to-Analog Conversion
  7. Be sure to update your ToC prior to EVERY submission.

To effectively interface with real world signals (voltage, for now), digital devices need to approximate varying analog voltage levels (Vout).

Circuits that provide Analog-to-Digital Conversion of voltage levels (ADCs) and their inverse (Digital-to-Analog Conversion (DACs)) are important to understand for embedded systems engineers. The former (ADCs) will be examined later in this course. The latter is the focus of this first project.

There are a number of different curcuit designs DACs but the one that is easily accessible to you at this point in your journey is the R/2R Resistor Ladder. We will explore the theory and prototypting techniques of the R/2R Resistor Ladder design in class.

The graphic to the right shows a plot of the output of the 6-bit R/2R Resistor Ladder when interfaced with an Arduino. The code provides a sequence on binary inputs from 0 to 63 and the resultant voltage levels clearly depict the expected staircase appearance of increasing voltage levels. Towards the end of the course you'll have the software skill to produce a similar plot.

Basic Task...

  1. Undertake as much research as you need to until you gain a sense of what a 4-bit R/2R Resistor Ladder can achieve and how to construct one on a breadboard.
  2. Using appropriate resistor choices from your kit, together with 4 slide switches, construct your easy-to-view, manipulate and measure ladder (network).
  3. Using a DMM take some samples mapping a variey of switch setting to the expected and actual voltage readings.
  4. Your DER summary sections and video expectations remain the same from Grade 10, for now.

...and Beyond

You've been given sufficient time to permit you to go beyond the basic task described above if you're sufficiently motivated. Here are a few ideas...

  1. Add a voltage follower to rectify the Vout voltage as shown in the enhanced graphic to the right using your LM741 Op Amp.
  2. Consider making a more permanent prototype either on stripboard, perf board, or perma-proto board.
  3. Consider a compact rocker DIP switch bank for easy input.
  4. Consider encasement of some form.
  5. Alternatively, you may wish to include greater resolution beyond the 4-bit (16 quantization levels) basic task. 6 bits would provide 64 levels, 8-bits (256 levels) and 10-bit (1024 levels). The higher the quantization the finer the resolution!
