RSGC ACES: Common EasyEDA/Digikey Through Hole Parts. Last Update: 2024 09 17

Notes.

  • A work in progress...
  • Add our RSGC ACES Through-Hole Parts Library to your EasyEDA application: ACES_THT.lbr
  • The links below are recommendations chosen for either their silk screening, longer pads, lead spacing or arrangement, or some other advantageous characteristic
  • Place a version of the logo on the front of all boards you design if at least one part is given to you. RSGC ACES in a small font should be added as well as your name.
  • See additional EasyEDA Through Hole PCB Design Tips.
  • Additional PCB Design Tips appear at the end.

EasyEDA
(LCSC)
Search		 Digikey
Part Number		 Manufacturer/
Product Number		 Description Image
PJ-002A CP-002A-ND CUI/PJ002A DC Jack 2.1mm (Eyelet)
PJ-102A CP-102A-ND CUI/PJ-102A DC Jack 2.1mm (PC Pin Solder)
C3312320
(LCSC)		 GH7176-ND GrayHill/76SB08ST SWITCH ROCKER DIP SPST 0.15A 30V
PPTC041LGBN S5440-ND Sullins
PPTC041LGBN-RC
4 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
PPPC081LG
C3322394
(LCSC)		 S5483-ND Sullins
PPPC081LGBN-RC		 8 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold

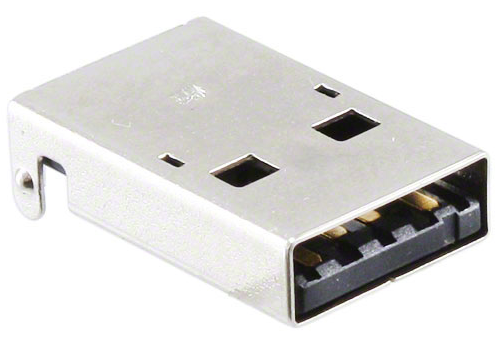

MINI USB B
5V Power
Receptacle		 WM17115-ND con-cypressindustries MNI-USB_SHIELD5P2-32005-601
JST Connector 455-1719-ND adafruit > JST_2PIN

TO-92

Transistors
V - Reg
TMP36
etc...

2N3904TFCT-ND transistor > NPN
 -NPN-TO92-EBC
(Formed Leads
Long Pads :)

TO-220

Voltage Regulator
(7805, 7809,..)

LM317 (Adj.)

MOSFET
IRF520

497-1443-5-ND v-reg 78XXL
Tactile Switch
12mmx12mm		 EG1826-ND Sparkfun-Switches
MOMENTARY-SWITCH-SPST		 MOMENTARY-SWITCH-SPST-PTH-12MM
On-On SPDT
Slide Switch		 EG1903-ND switch M251
Headers (Male) 3M156313-06-ND Sparkfun-Connectors CONN_nn...
Headers (Female) 929974E-01-06-ND Sparkfun-Connectors CONN_nn...
ISP Header Rectangular
Male
Headers		 atmel

AVRISP > AVRISP-6
Resistor
(Axial)		 CF14JT10K0TR-ND Sparkfun-Resistors 10KOHM-HORIZ-1/4W-5%
Resistor Network

(Bussed or Isolated)

 4610X-1-103LF-ND resistor-sil G10R
IC Socket
(Kinked Leads)		 1175-1487-ND (14)
1175-1488-ND (16)		 ic-package DIL14-3 (or any other even comb)
DIL16-3 (or any other even comb)
IC Socket
(Kinked Leads)		 3M5480-ND ic-package DIL28-3
(ATmega328P)
595 SHFT REG 296-1600-5-ND 74xx-us 74LS595N
ATmega328P ATMEGA328-PU-ND Sparkfun-IC-Microcontroller ATMEGA328P_PDIP
ATtiny84 ATtiny84A-PU-ND Sparkfun-IC-Microcontroller







 ATTINY84 >
ATTINY84ATTINY84-20PU
ATtiny85 ATTINY85V-10PU-ND atmel TINY13-20PU

LED C503B-GCN-CY0C0791-ND Sparkfun-LED
LED > LED5MM
7-Segment Display 67-1453-ND display-hp HDSP-M
Bargraph 1080-1184-ND LED LED > LB10
Ceramic Capacitor
0.1uF (104)
 BC1160CT-ND Sparkfun-Capacitors 0.1UF > 0.1UF-KIT-EZ-50V-20%
100uF Capacitor P833-ND Sparkfun-Capacitors 100uF POLAR >
100uF-POLAR-RADIAL-2.5MM-25V-20%
Crystal (XTAL) XC1748-ND Sparkfun-Clocks CRYSTAL > CRYATALPTH-HC49US

PCB Tips.
