TIK2O JUNE EXAM-Robots
Tuesday, June 7th, 2005. 1:00 pm.

INSTRUCTIONS TO STUDENTS.
  1. Evidence of Stepwise Refinement strategies (private, single-purpose, helper methods) will be considered when I examine your code.
  2. Be sure to comment your code as necessary.
  3. It is imperative that you name your files exactly as requested. Attach all (and only) the requested files to your email to handin at the end of the exam.
  4. Good luck.
ROAD TRIP

SINCE THIS IS YOUR FINAL EXAM, I thought it appropriate to condition you to the possibility of an imminent vacation. In this programming assignment, the goal is to have your vehicle arrive at its destination with no more fuel than necessary. (0 liters is expected)

The program opens with a vehicle on Highway 401 at Exit (Avenue) 0, heading East, with some fuel (in liters) in the tank. The amount of fuel the vehicle has is displayed as its label. The driver file is written so that there is a random possibility that there is just enough fuel for the trip without the need to pull into the gas station.

Since gas stations along the 401 are quite far apart, the decision about whether to take on fuel is critical. In this exam, you are restricted to two choices.

  1. If you arrive at the Exit (Avenue) of the only gas station en route and it is determined that insufficient fuel reserves are in the tank, you are to pull into the station and take on only as much fuel as is required to get to your destination (ending with 0 liters), or,
  2. If it is determined that the vehicle's tank contains enough fuel to reach the intended destination, no refueling will be made.

Examine the following Sample Runs.

RUN
COMMENTS
Vehicle has just enough fuel to reach the destination (no refueling required)
Vehicle has insufficient fuel to reach its destination and must acquire just enough to arrive on an empty tank. Notice how the pump was depleted by 4 liters after the vehicle took just as much as it needed to reach its destination.
Program must be prepared to exit for fuel even a Exit (avenue) 0.

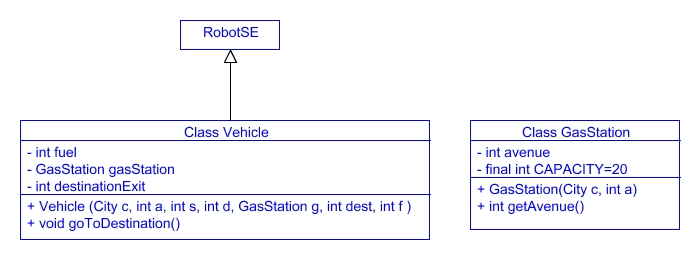

TASK. Using the driver, RoadTrip.java, without modification, develop the Vehicle and GasStation classes as defined by the following UML diagrams (see also the Javadoc Documentation), that will permit you to arrive at your destination with 0 liters of fuel remaining in your tank. Submit the fully documented source files Vehicle.java and GasStation.java to handin with the Subject: Final Exam.
