A fundamental understanding of the organization and architecture of computer hardware can enhance its performance. Furthermore, writing code in as close to the native language of the processor as possible can eliminate the inefficiencies that creep in through the multiple components in the toolchain (compilers, libraries, etc.). The exercises below introduce you to lower level instruction techniques designed to increase performance by reducing demand on resources.

1.C's Bitwise Operators

Task. Review C's bitwise operators and their precedence before completing the sketch below.

// PROJECT  : BitsandBytes
// PURPOSE  : Bit-level manipulation
// COURSE   : TEJ3M
// AUTHOR   : C. D'Arcy
// DATE     : 2025 12 08
// MCU      : 328p (Nano)
// STATUS   : Working
// REFERENCE:https://docs.arduino.cc/language-reference/

uint16_t value = 2048;

void setup() {
  Serial.begin(9600);
  while (!Serial) {}
  Serial.println(value);
  // multiply by 4

  Serial.println(value);
  // divide by 8

  Serial.println(value);
  Serial.println(value,BIN);
  //swap the low and high bytes

  Serial.println(value, BIN);
  // invert all bits

  Serial.println(value, BIN);
  // invert them again

  Serial.println(value, BIN);
  //set bit 10

  Serial.println(value, BIN);
  //clear bit 2

  Serial.println(value, BIN);
  // toggle bit 10

  Serial.println(value, BIN);
}

void loop() {}

2. Register-Level Manipulation of the ATmega328p's GPIO Ports

In this segment you are asked to employ the techniques in Step 1 to manipulate the ATmega328p's digitlal pins in a more direct (and efficient) manner than employing Arduino C's high-level pinMode(), digitalWrite() and digitalRead() functions.

First, understand the memory areas you are exploiting...

ATmega328p's 3 Memories	ATmega328p's Registers

Next, familiarize yourself with the General Purpose Input/Output (GPIO) registers that you will modify,

Task.

1. (Output) Through direct manipulation of the GPIO Port Registers, recreate the Blink sketch.
2. (Input) Place a pulldown button configuration into Port D, pin 2. (PD2). Through direct manipulation of the GPIO Port Registers, Record and display the number of milliseconds it takes a user to respond to a request to press the button.

3. Register-Level ShiftOut

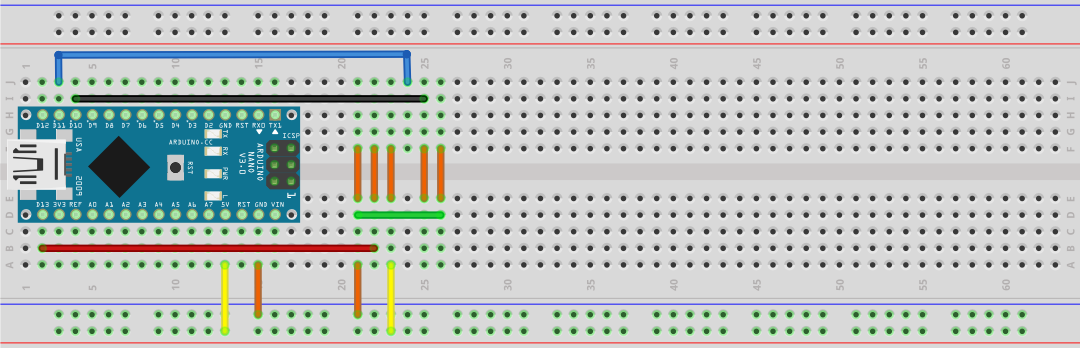

In this exercise you are asked to take on the built in shiftOut() function through the use of register-level manipulation of the three control lines (data, clock and latch). Having soldered up your Morland bargraph you can place it into the context shown below.

4. ATtiny85 Register-Level Bicolor Blink

In this exercise you are invited to explore the potential benefits of porting your skills (pardon the pun) to ATMEL's 8-bit ATtiny85 MCU. The beauty of the AVR family of MCUs is that they're designed to be portable due to their common instruction set and register architecture. This allows you to transfer much of what you have learned over the past few classes in order to establish an alternate blinking pattern on the Kingbright rectangular bicolor LED given to you.

Task.

1. Review the ATtiny85 pinout diagram shown below. Identify the location of the important ISP pins (SCK, MOSI, MISO & RESET) as well as the 5VCC and GND pins.
2. Place your ATtiny85 MCU in your breadboard and wire in the 6 pins of your ACES' ISP Breakout board.
3. Open your Arduino IDE and download and install the ATtinyCore package through the use of the Board Manager.
4. Develop and upload a register-level sketch that results in an alternate red/green blinking pattern across the 2 pins that are not engaged in the ISP protocol.
5. Finally, keep in mind the applicability of the ATtiny85 as a compact aternative to the ATmega328p in your future projects.
